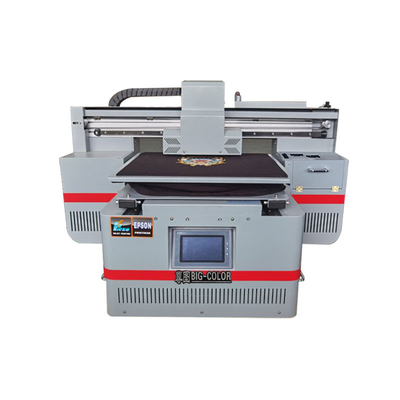

Garment shops best price ZT4060 DTG UV flatbed printer a2 UV printer with double dx8 print heads for glass-metal T-shirt, bottle print

1 Set
MOQ
$4,500.00(1 - 4 Sets) $4,200.00(5 - 9 Sets) $4,000.00(>=10 Sets)
Preis
Garment shops best price ZT4060 DTG UV flatbed printer a2 UV printer with double dx8 print heads for glass-metal T-shirt, bottle print
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Type: Inkjet Printer
Applicable Industries: Garment Shops, Printing Shops, Advertising Company
Condition: New
Plate Type: dtg printer
Usage: Paper Printer, Label Printer, Card Printer, Cloths Printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 110V\220V
Dimensions(L*W*H): 970mm*1010mm*560mm
Weight: 90 KG
Warranty: 13months
Print Dimension: A2
Ink Type: UV Ink
Key Selling Points: Multi Color
Marketing Type: Hot Product 2022
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 13months
Core Components: Motor, Engine, board system
Product name: ZT4060
Print head: 2 pieces DX8 print heads
Color: 4 color+white +varnish
Print speed: 60 sec/page
Resolution: 720*4320dpi
Printing height: 15cm
Printing material: glass, acrylic board, metal, KT board, leather bottle
RIP software: Maintop/Photo print
Operating System: Windows 7 professional/xp/8
After Warranty Service: Online Technical Service
Grundinformation
Zahlung und Versand AGB
Packaging Details: The normal package is stronger wooden box with metal structure inside. If export to European countries, the wooden box will be fumigated.If container is too tight, we will use PE film for packing or pack it according to customers special request.
Supply Ability: 100 Set/Sets per Month
Produkt-Beschreibung
Model No
Print head
Printing area
Printing height
Speed
Color
A3-UV-single head
1 pcs Epson DX8
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A3-UV-double head
2 pcs Epson DX8
40*30cm
15cm
80sec/page
(A3)
CMYK+W+V
A3-DTG-single head
1 pcs Epson DX7
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A2-UV-doube head
2 pcs Epson DX8
40*60cm
15cm
60sec/page
(A3)
CMYK+W+V
9060-dx8
3 pcs Epson DX8
100*70cm
8cm
4.5m²/h
CMYK+W+V
9060-4720
3 pcs Epson 4720
100*70cm
8cm
10m²/h
CMYK+W+V
1610-dx8
3 x Epson DX8
160*100cm
25cm
6.5m²/h
CMYK+W+V
1610-4720
3 x Epson 4720
160*100cm
25cm
12m²/h
CMYK+W+V
2513-dx8
3 pcs Epson DX8
250*130cm
8cm
6.5m²/h
CMYK+W+V
2513-4720
3 pcs Epson 4720
250*130cm
8cm
12m²/h
CMYK+W+V
Product Description

Product Application

Big Color small size uv printer can print on rotary and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-4060
Product Name
a2 uv flatbed printer
Model
ZT4060
Printer head
2 pc tx800 head(dx8)/4720
Speed
A3: 60seconds.       A4: 70 seconds
Maximum Resolution
720*4320 dpi
Ink
K C M Y W V  4 COLOR +WHITE+VARNISH
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Max Printing heigh
15 cm for standared   (20cm for special order)
Rip software
Maintop 6 uv version for standared & photoprint uv 12 for optional
Machine Dimension
1.14*1.09*0.76m
UV lamp
2 UV LED LAMP For water coolling
High level mode 4060 uv printer,vaccum flatbed(optional）
Click on the image and then you can watch the live video

Famous HIWIN brand guide rail way

Famous supplier brand in the industry, strong guide rail, high precision

auto height sensor to max 150mm

Intelligent control of printhead printing height, more accurate and convenient.Other sellers use manual controls

Ink system:stir and alarm

Lack of ink when the alarm sound, timely add ink to prevent printing interruption
Stirring system, can better protect the printheads, prolong the service life

multi-functional

1.head heat:used for cold weather
2.emergency stop :
3.rotary-flatbed switch

height 150mm

Free adjustment of height makes the machine a wide range of applications and can print high materials

wisible work window.

Machine use clamshell model.User can install printhead easily

Main Features

1) White+color print at one time.

2) Hiwin liner and silence chain

3) Water cooling uv led lamp

4) Maintop or photoprint rip software

5) Auto height setting sensor.

6) White ink stirting & ink alarming system

Certifications
Sample Display
Our Exhibition
Our Service

Pre-Sales Service

* Inquiry and consulting support.


* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.


* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
1.14*1.09*0.76m=0.95



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery
Delivery Time
7 days after payment
Port
Shanghai port or as customer's request.
FAQ
1. Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount .

3. What’s your payment method?
Payment method is T/T , Western Union, paypal.

4. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly,will send an
overseas engineer service to you.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken
parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
