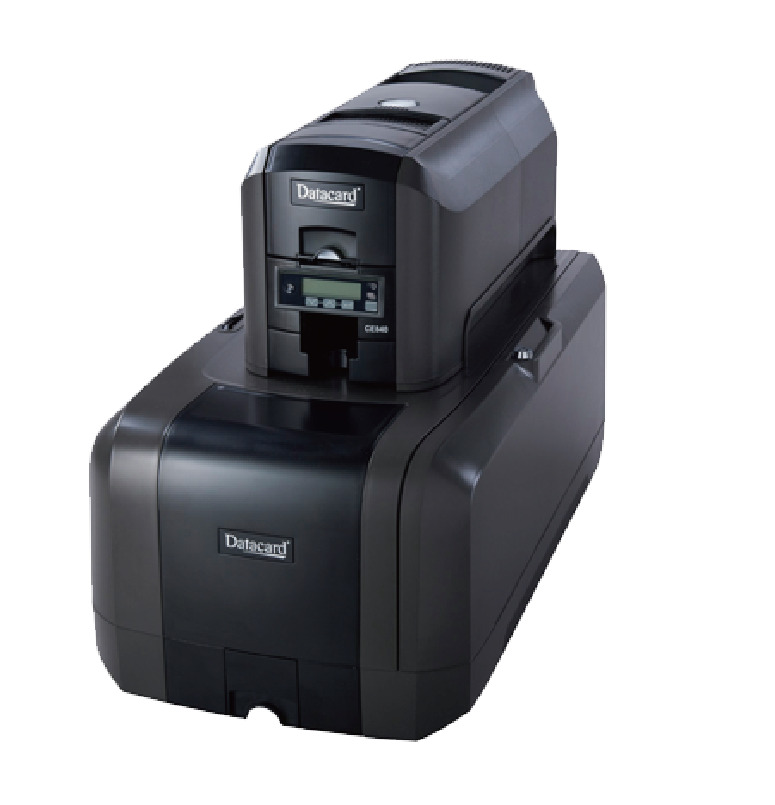

Hospital Datacard CE840 Embossed PVC Card Printer

A Powerful System for On-Demand Card Issuance

Financial institutions, service bureaus, retailers, governments and other card issuers can now issue highly secure and personalized embossed cards on demand or in low-volume batches with the Datacard ® CE840 ™ instant issuance system. Backed by our world-class

reputation and unmatched system performance, this desktop system empowers you to enhance engagement efforts or implement new programs. Standard features include embossing, indent printing and magnetic stripe encoding. Optional direct-to-card color

printing and smart card personalization are also available.

• High quality embossing and indent printing. Issuing personalized cards instantly with

high-quality embossed characters and indent printing adds security and aesthetic quality

to your cards and programs. Embossed characters are virtually impossible to alter, forge

or remove. They also add a solid, high-value feel to your cards.

• Choice of encoding and printing. This system offers standard magnetic stripe encoding

and optional EMV ® compliant smart card personalization, making it ideal for lower-

volume card programs. Optional direct-to-card printing creates edge-to-edge, full-color

images that engage customers, enhance your brand and add value to your programs.

• Flexible integration for a variety of applications. The CE840 system offers multiple

integration options for implementation into new or existing issuing environments.

Custom desktop issuance software is available from Datacard Group that offers an

intuitive user interface as well as complete control and process support from design to

card tracking to auditing.

• Strong program security. A variety of physical and logical security features support

Visa and MasterCard security standards. You also get audit trails and robust protection

for card stock and supply items.

SPECIFICATIONS

Embossing/Indenting --- 75-character embossing/indenting wheel, financial format per ID-1 ISO 7811-3;

front, rear or both sides of the card MasterCard security characters;

Helvetica ® characters; OCR-A1, OCR-B1

Speed --- Up to 60 seconds to encode magnetic stripe, indent and emboss the card

Up to 64 seconds to print monochrome graphics, encode magnetic stripe, indent and emboss the card

Up to 78 seconds to print color graphics, encode magnetic stripe, indent and emboss the card

Encoding Magnetic stripe encoding | ISO 7811, three track high- and low-coercivity

Card capacity Automatic card feed with 100-card input hopper based on 0.030 in. card thickness

Output hopper, up to 10-card capacity; reject bin, up to 10-card capacity; exception card slot

Security features Mechanical or software-activated lock to secure card stock, supplies, and reject card hopper

SSL/TLS encryption, supports 3DES and AES-256; bolt-down ready

Kensington ® lock compatible (lock sold separately); concealed output hopper; non-resettable card

counter for auditing

Display Two-line LCD display

User interface languages available: English, Spanish, German, Italian, Japanese, Traditional Chinese,

Korean, Portuguese and Arabic

Physical dimensions Top module: 8.8 in. W x 21.2 in. D x 8.8 in. H (22.4 cm x 53.8 cm x 22.4 cm)

Bottom module (embosser): 15 in. W x 27.5 in. D x 10.5 in. H (38.1 cm x 69.9 cm x 26.7 cm)

Weight Top module (encoding, printing): 12 lbs. (5.4 kg)

Bottom module (indenting, embossing, topping, card output): 40 lbs. (18.1 kg)

Connectivity Ethernet and USB

Warranty 12-month system warranty

OPTIONS

Embossing/Indenting Second 75-character wheel for embossing

Smart card

personalization

Contact and contactless smart card encoding for ISO 14443 A/B, ISO 7816 and Mifare ® chips

Single-wire connectivity; supports production of EMV level-1 compliant cards

Print technology Direct-to-card dye sublimation/resin thermal transfer printing

One-sided (simplex) and two-sided (duplex), edge-to-edge printing

Full-color and monochrome capability

Standard mode: 300 x 300 dots per inch, standard text, bar code and graphics printing

High-quality mode: 300 x 600 dots per inch; enhanced text and graphics printing

300 x 1200 dots per inch; enhanced text printing

256 shades per color panel

Datacard ® TrueMatch ™ printing technology

Ability to conform to sRGB standard

24-Month Standard Depot Warranty

24-Moth Printhead Warranty (No Pass Restrictions)
